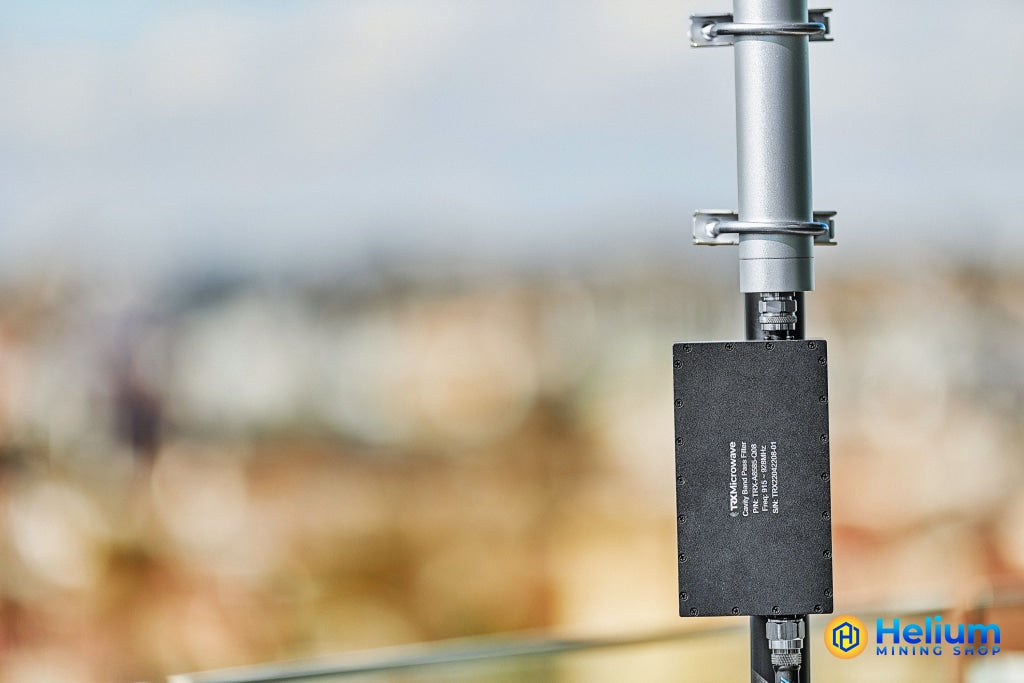

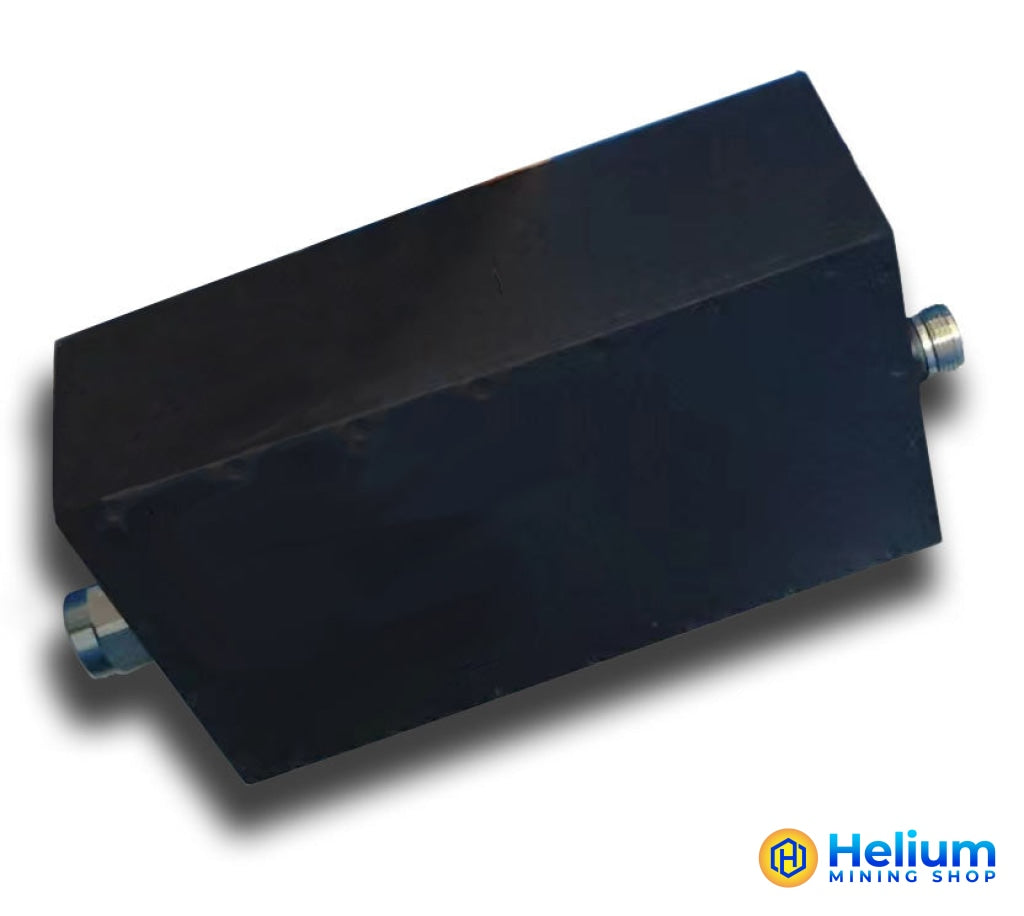

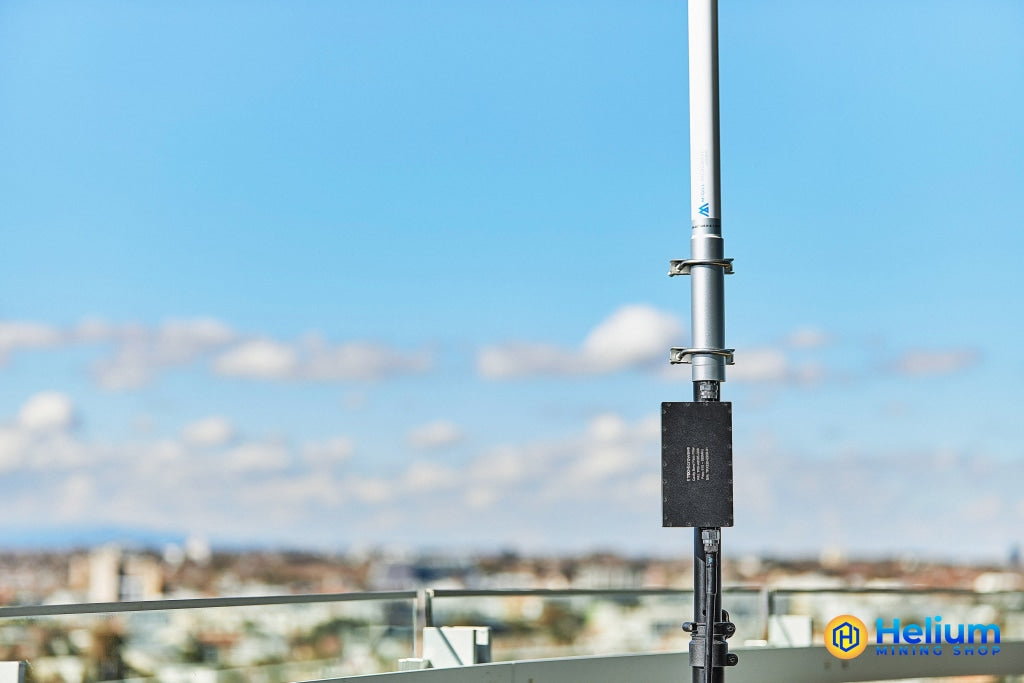

Ultra-Low Loss Helium Hotspot AU915 Waterproof Cavity Band Pass Filter TRX-A8585
Ultra-Low Loss Helium Hotspot AU915 Waterproof Cavity Band Pass Filter TRX-A8585
Couldn't load pickup availability
Weight
Weight
Dimensions
Dimensions
156*88*51mm
Materials
Materials
Copper, Aluminum
Shipping & Returns
Shipping & Returns
Australia Post Standard Shipping:
2-8 business days
International Shipping:
6-27 business days
30 day money back return policy
Ultra-Low Loss Helium Hotspot AU915 Waterproof Cavity Band Pass Filter
TRX-A8585
|
S/N |
Item |
Parameters |
|
1 |
Center Frequency(F0) |
921.5MHz |
|
2 |
Pass Band Frequency |
915 ~ 928MHz |
|
3 |
Pass Band Insertion Loss |
≤0.8dB |
|
4 |
Pass Band Ripple |
≤0.1dB |
|
5 |
Pass Band Return Loss |
≥24dB |
|
6 |
Stop Band Rejection |
≥68dB @ DC ~ 895MHz |
|
7 |
Impedance |
50 Ohms |
|
8 |
Power Handling |
50W Max. |
|
9 |
Connectors |
N-Male / N-Female |
|
10 |
Surface Finish |
Painted Black |
|
11 |
Temperature Range |
-30℃ ~ +70℃ |
|
12 |
Waterproof |
IP67 |
|
13 |
Material |
Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy |
|
14 |
Dimensions |
156*88*51mm |
|
15 |
Net weight |
1.261 kg |
Outline Drawing: (Dimensions Unit: mm, Dimensions Tolerance: ±0.5mm)
Need Help?
Need help selecting the right antenna, mounting, cable or connector type? Our sales team are ready to assist you. Get in touch with us today and we'll make sure you order the correct parts.
