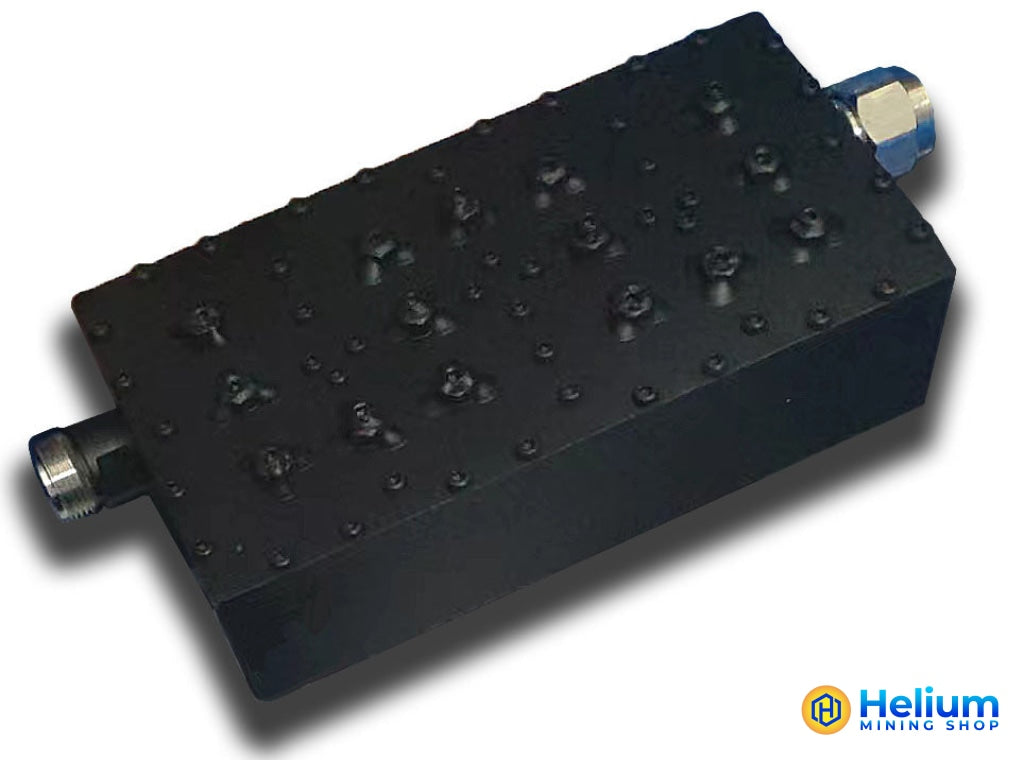

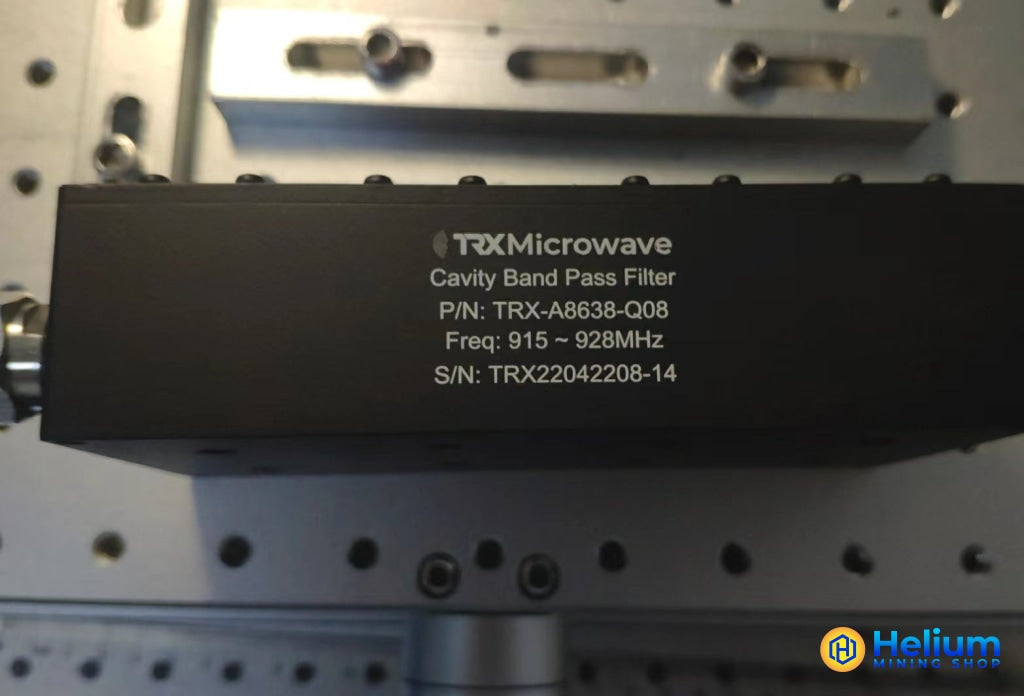

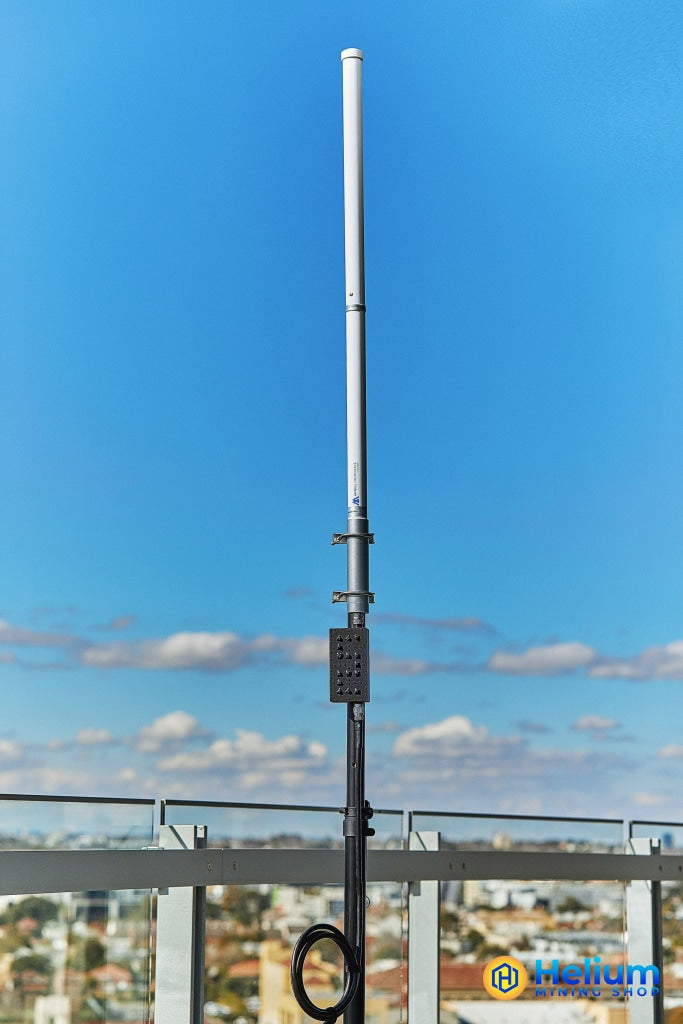

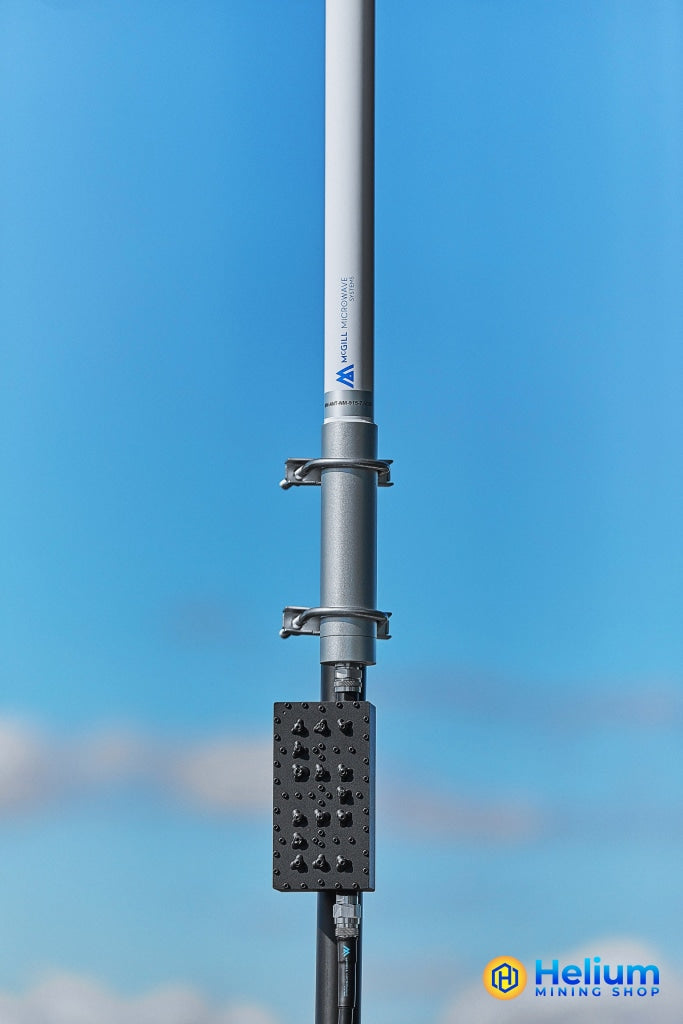

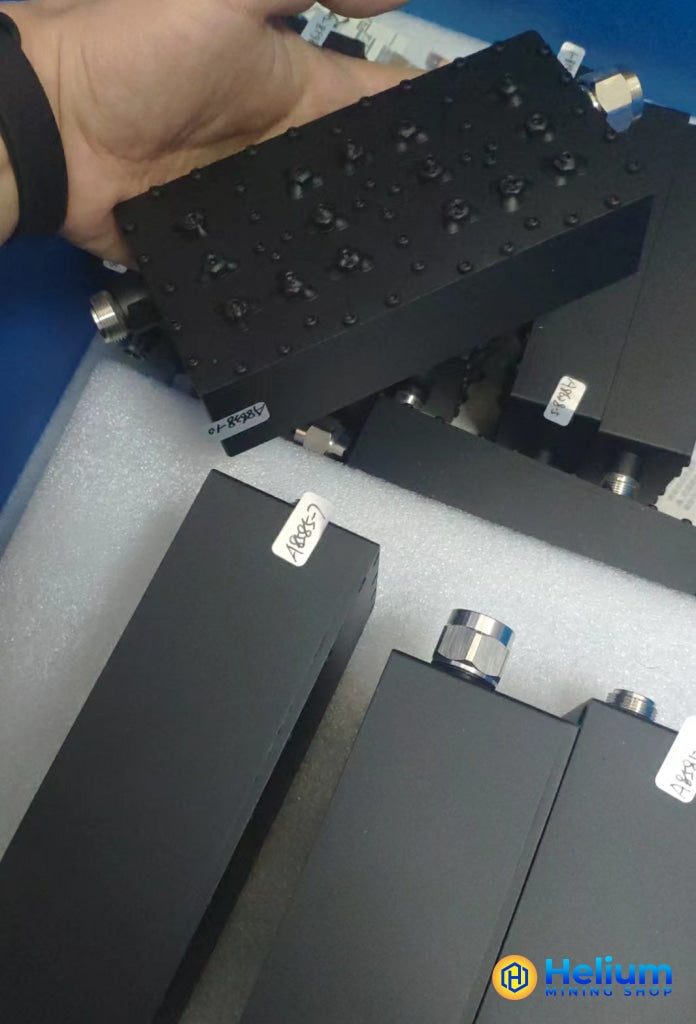

Ultra-Low Loss Helium Hotspot AU915 Indoor Cavity Band Pass Filter TRX-A8638
TRX-A8638-Q08
Cavity Band Pass Filter
Technical Data Sheet
|
S/N |
Item |
Parameters |
|
|
1 |
Center Frequency(F0) |
921.5MHz |
|
|
2 |
Pass Band Frequency |
915 ~ 928MHz |
|
|
3 |
Pass Band Insertion Loss |
≤0.8dB |
|
|
4 |
Pass Band Ripple |
≤0.1dB |
|
|
5 |
Pass Band Return Loss |
≥23dB |
|
|
6 |
Stop Band Rejection |
≥67dB @ DC ~ 895MHz |
≥62dB @ 948 ~ 3000MHz |
|
7 |
Impedance |
50 Ohms |
|
|
8 |
Power Handling |
50W Max. |
|
|
9 |
Connectors |
N-Male / N-Female |
|
|
10 |
Surface Finish |
Painted Black |
|
|
11 |
Temperature Range |
-30℃ ~ +70℃ |
|
|
12 |
Material |
Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy |
Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel |
|
13 |
Dimensions |
141*73*36mm |
|
|
14 |
Net weight |
0.587 kg |
|
Outline Drawing: (Dimensions Unit: mm, Dimensions Tolerance: ±0.5mm)
