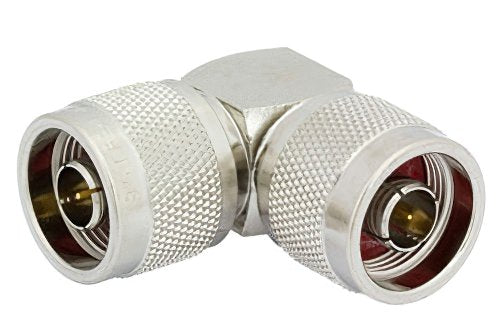

N MALE - N MALE Right Angle Adaptor
N MALE - N MALE Right Angle Adaptor
Couldn't load pickup availability
Weight
Weight
Dimensions
Dimensions
Materials
Materials
Shipping & Returns
Shipping & Returns
Australia Post Standard Shipping:
2-8 business days
International Shipping:
6-27 business days
30 day money back return policy
Description
N Male – N Male Right Angle Adaptor
McGill Microwave are a leading supplier of in-series and inter-series precision RF adaptors, covering the full frequency range DC-110 GHz.
All interface types and style are available from Ultra High Performance, Precision Metrology grade to general purpose use including Hermetically Sealed versions and high corrosion resistance Stainless Steel designs.
The McGill Microwave Systems N Male – N Male Right Angle Adaptor (NMRA-NMRA-ADPT) provides the ideal solution to join 2 N Female Connectors and pass RF/Microwave frequencies to 6 GHz, whilst offering an industry leading low VSWR performance of 1.25:1 Maximum.
| Electrical Specifications | |
| Item | Value |
| Impedance | 50 Ω |
| Frequency Range | DC-6GHz |
| VSWR | ≤1.25 (DG-6GHz) |
| Withstand Voltage | 500V rms |
| Insulation Resistance | >5000MΩ |
| Mechanical Specifications | |
| Item | Value |
| Temperature Range | -65 / +165 °C |
| Mating Cycles | >500 |
| Connector A | N Male Right Angle |
| Connector B | N Male Right Angle |
| Material Specifications | ||
| Item | Base Material | Plating |
| Body & Coupling Nut | Brass | Nickel |
| Centre Conductor | Brass | Gold |
| Gasket | 6146 Silastic | N/A |
| Insulator | PTFE | N/A |
| Interface Standards |
| MIL-C-39012 |
| IEC 60169-11 |
| CECC22210 |
